Sample images
TAW 12 EN
Prod. No. 574326
Product details
Stainless steel tray clearing trolley, 1-piecefor 12 Euronorm trays (530 x 370 mm)
basic model 378436
Added to Your Shopping Cart
| Ledge spacing | 100 Millimeter |
| Exterior dimension height | 1550 Millimeter |
| Electrical | No |
| Number of supports/ledges | 12 Pair |
| Max. load per support pair | 4.5 Kilogram |
| Supports/ledges | Yes |
| Exterior dimensions depth | 673 Millimeter |
| Load-bearing capacity | 150 Kilogram |
| Exterior dimensions width | 513 Millimeter |
| Weight | 21 Kilogram |
| Material | Stainless steel |
| Product group | Tray clearing trolleys |
| Tray clearing trolley capacity | 12 Euronorm trays |
| Support spacing | 100 mm for 12 trays |
| Castor model | 1 set synthetic castors with standard castors, DIN 18867, 125 mm dia., 4 steering castors, 2 of which have brakes |
Other documents (1)
Customer Information Drawings (1)
Use & Operating Manuals (1)
Tender specifications (4)
|
144328 |

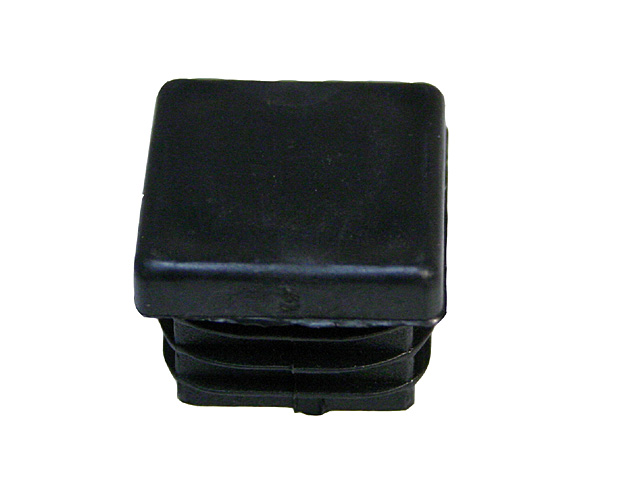

Lamellar plug 25x25 black
(valid from 09/14/2015)
|
4 ST | |
|
386499 |
Swivel castor 125 lock., DIN-Pin (gray)
(valid from 08/02/2022)
|
2 ST | |
|
386500 |
Swivel castor 125, DIN-Pin, (gray)
(valid from 08/02/2022)
|
2 ST | |
|
362627 |
Square adapter 22.4 f. DIN pegs, whls.
(valid from 09/14/2015)
|
4 ST | |
|
373605 |
Wall guard D100 RAL 7043
(valid from 09/14/2015)
|
4 ST | |
|
380611 |
Wireframe TAW GN EN 12 passivated
(valid from 09/14/2015)
|
2 ST |
