Sample images
BC DF 5000, 400 V
Prod. No. 574211
Product details
COOK deep fryerCapacity: 6.5 litres
Capacity: one large deep-frying basket or two small deep-frying baskets
Exterior dimensions: 620x400x240 mm
Output/connected load: 400V 3N PE 16A 50-60Hz 5.0kW
Added to Your Shopping Cart
Capacity from | 5 Liter |
Capacity to | 6.5 Liter |
Usable area width | 238 Millimeter |
Usable area length | 346 Millimeter |
Exterior dimension height | 240 Millimeter |
Electrical | Yes |
Supports/ledges | No |
Exterior dimensions depth | 400 Millimeter |
Exterior dimensions width | 620 Millimeter |
Weight | 16 Kilogram |
Material | Stainless steel |
Product group | COOK |
Customer Information Drawings (3)
Declarations of Conformity (2)
Use & Operating Manuals (2)
Service & Maintenance Manuals (1)
Tender specifications (4)
121612 |
Gauge foot M10x30 black
(valid from 06/19/2015)
|
4 ST | ||
121545 |
drain cock
(valid from 06/19/2015)
|
1 ST | ||
121598 |
Rosette
(valid from 06/19/2015)
|
1 ST | ||
121541 |

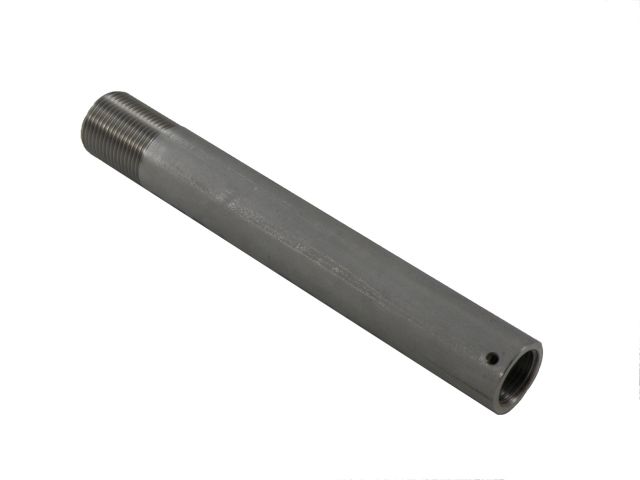

Drain pipe 3/4"-1/2"
(valid from 06/19/2015)
|
1 ST | ||
121580 |
Loctite Nr.510 Tube 50 CCM
(valid from 06/19/2015)
|
1 ST | ||
121561 |

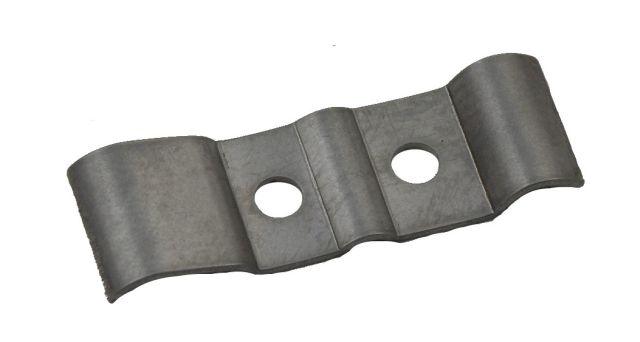

Holder for sensors SML DF
(valid from 06/19/2015)
|
1 ST | ||
121563 |

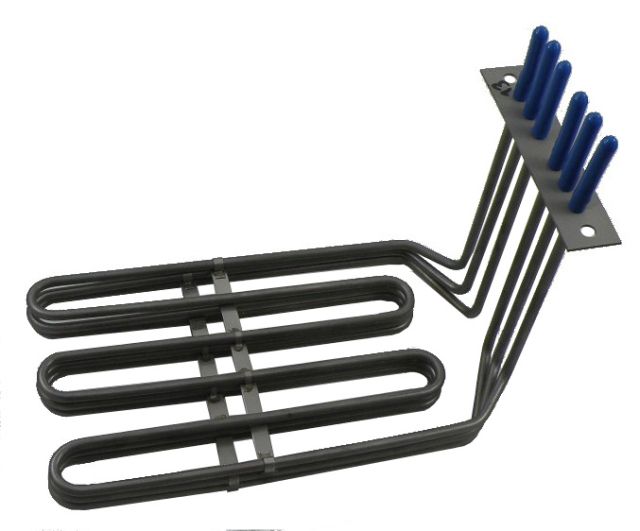

Heating element 3x230V 5kW
(valid from 06/19/2015)
|
1 ST | ||
121617 |

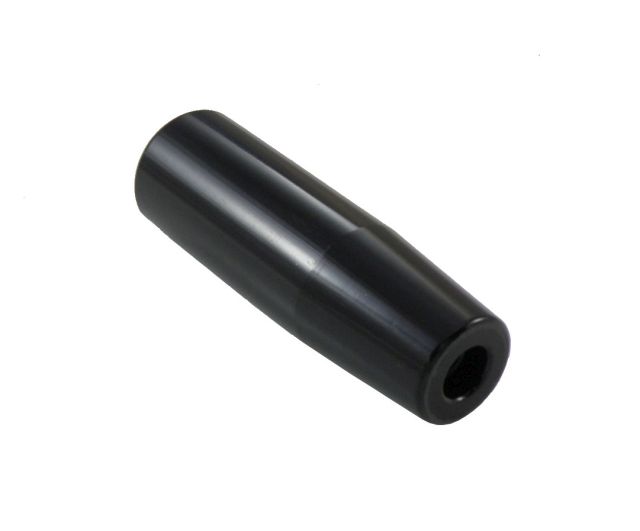

Cylindric knob M10
(valid from 06/19/2015)
|
1 ST | ||
121601 |

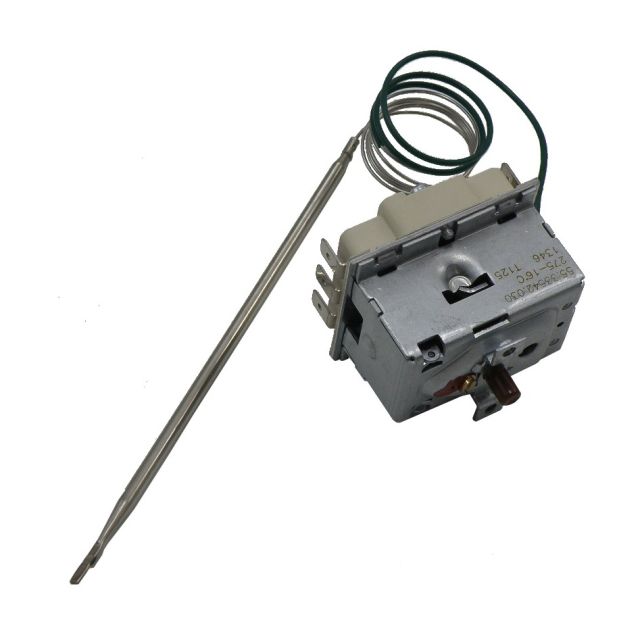

Safety thermostat
(valid from 06/19/2015)
|
1 ST | ||
121593 |

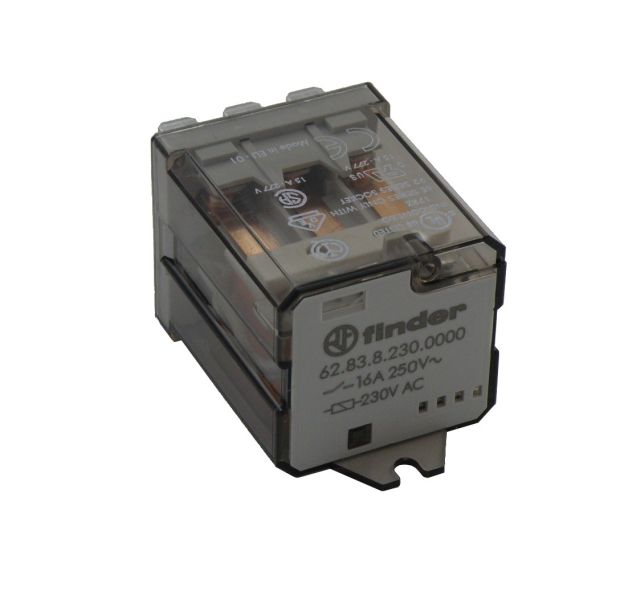

Contactor - 689327
(valid from 06/19/2015)
|
1 ST | ||
121582 |

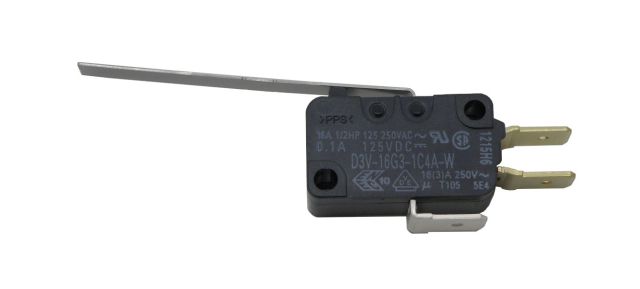

Micro switch 20(4)A 250VAC
(valid from 06/19/2015)
|
1 ST | ||
121576 |
Signal lamp yellow 230VAC
(valid from 06/19/2015)
|
1 ST | ||
121577 |
Signal lamp green 230VAC
(valid from 06/19/2015)
|
1 ST | ||
121556 |

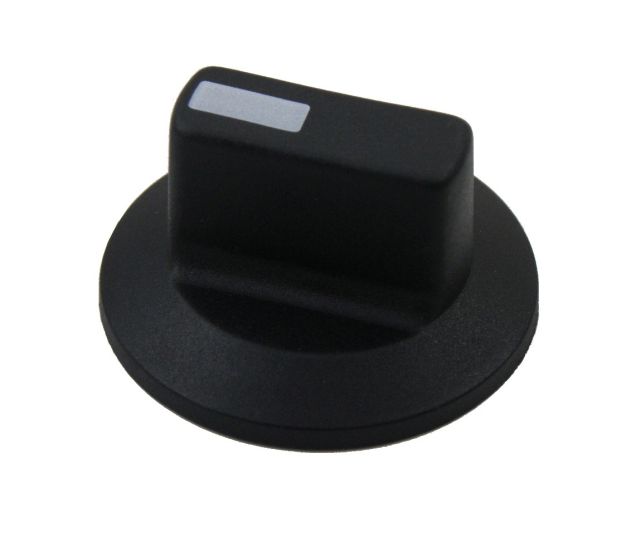

Control knob black notch on top
(valid from 06/19/2015)
|
1 ST | ||
121613 |
V-ring V 6 S 6401
(valid from 06/19/2015)
|
1 ST | ||
121549 |

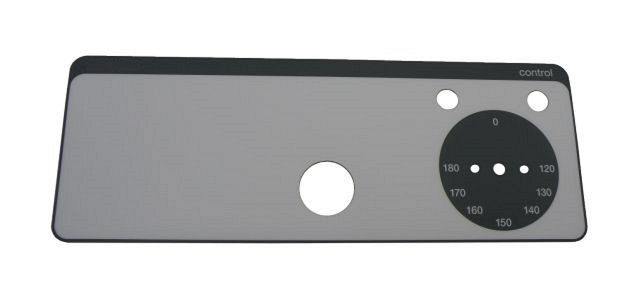

Self-adhessive control panel DF
(valid from 06/19/2015)
|
1 ST | ||
121590 |
Terminal block 400V/40A
(valid from 06/19/2015)
|
1 ST | ||
121616 |
strain relief for connection cable
(valid from 06/19/2015)
|
1 ST | ||
121609 |

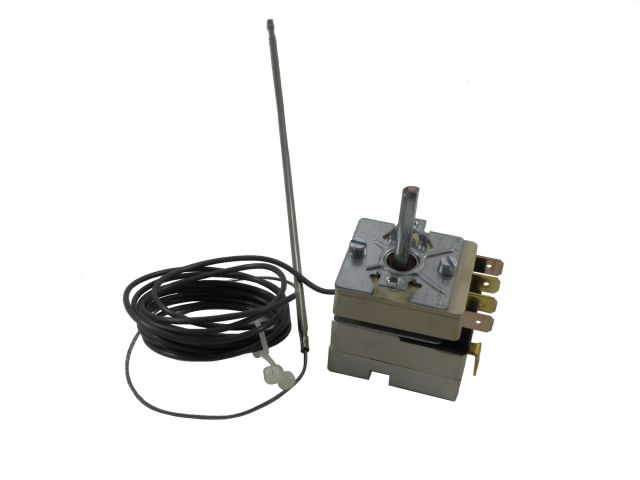

Thermostat
(valid from 06/19/2015)
|
1 ST | ||
121588 |
Power supply cable 5x1,5 cpl. with plug
(valid from 06/19/2015)
|
1 ST | ||
134074 |
Handle with screws
(valid from 07/20/2021)
|
1 ST | ||
121621 |

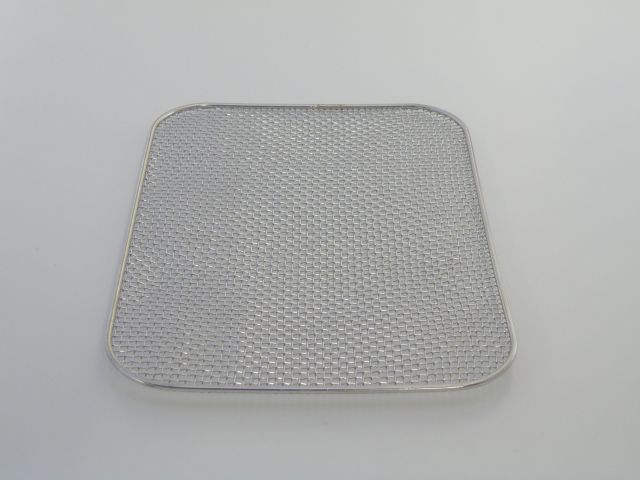

Removable sieve 225x300
(valid from 10/26/2015)
|
1 ST |
