Sample images
2 SHVS 26
Prod. No. 572908
Product details
Dispenser for heat-retaining lower basesMade of corrosion-resistant stainless steels
heatable (convection)
Capacity: 98 heat-retaining lower bases
basic model 367507
*****************************************************
Please note:
This article number is valid until 30.04.2019.
New article number valid from 01.05.2019 - 574 902
*****************************************************
Added to Your Shopping Cart
Stacking height with hooded | 664 Millimeter |
Exterior dimension height | 1062 Millimeter |
Electrical | Yes |
Dispenser capacity | 98 heat-retaining lower bases |
Supports/ledges | No |
Exterior dimensions depth | 1144 Millimeter |
Working height | 970 Millimeter |
Exterior dimensions width | 548 Millimeter |
Weight | 82 Kilogram |
Heating/cooling technology | active convection heating |
Material | Stainless steel |
Product group | Dispensers |
Castor model | 2 steering and 2 steering castors with brakes, diameter 125mm corrosion-resistant according to DIN 18867-8, made of plastic |
Other documents (1)
Declarations of Conformity (3)
106693 |
Temperature limiter, 190°C
(valid from 05/08/2006)
|
1 ST | ||
106870 |

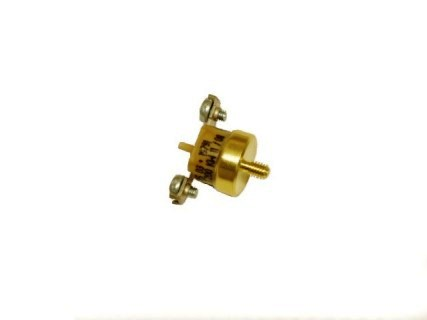

Temperature limiter 195°C Screw terminal
(valid from 03/06/2008)
|
2 ST | ||
106695 |

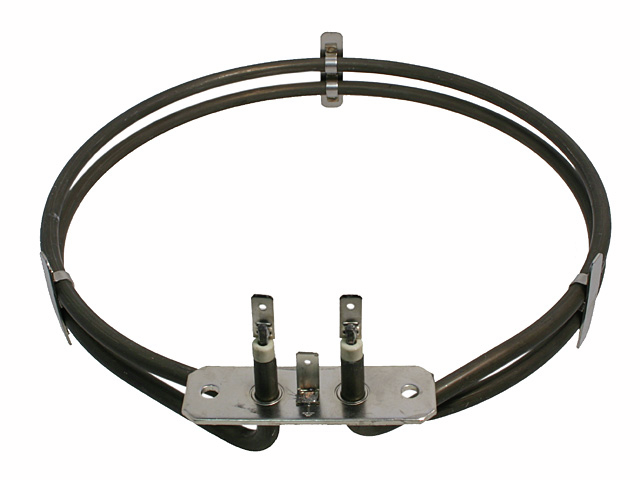

Tubular heater (helix), 1,500 W
(valid from 05/08/2006)
|
2 ST | ||
106188 |

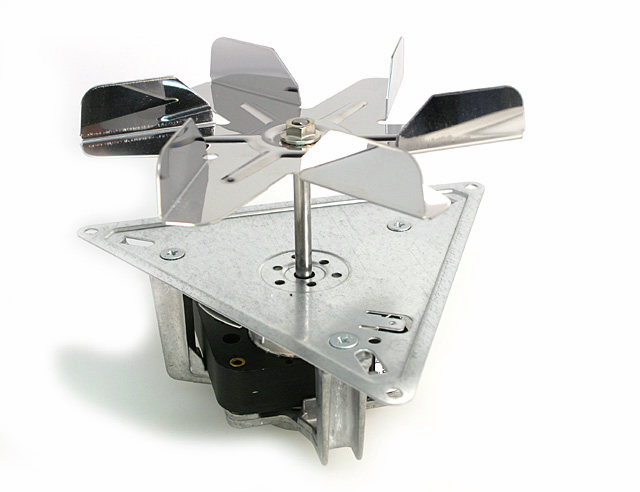

Radial fan R2K 150 - AC 01 (34)
(valid from 05/08/2006)
|
2 ST | ||
147973 |
Carrier small
(valid from 05/08/2006)
|
2 ST | ||
147971 |
Basket small
(valid from 05/08/2006)
|
2 ST | ||
146305 |
Tension spring 8GR
(valid from 05/08/2006)
|
24 ST | ||
146304 |
Tension spring 4GR
(valid from 05/08/2006)
|
4 ST | ||
367490 |

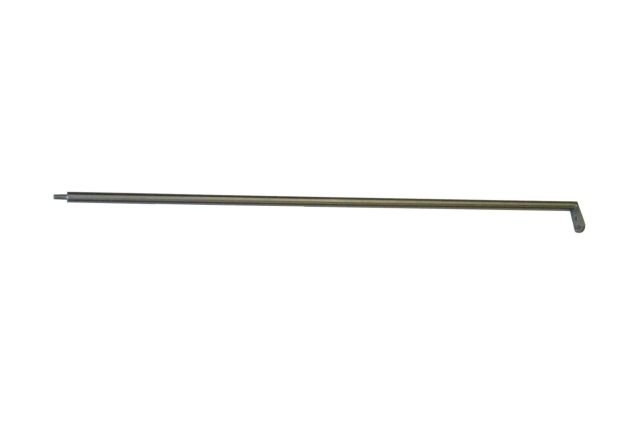

Guidance kpl.
(valid from 05/08/2006)
|
8 ST | ||
83031 |
washer A 8.4 DIN 125 brass
(valid from 05/08/2006)
|
2 ST | ||
705921 |
Locking latch cpl.
(valid from 09/19/2019)
|
2 ST | ||
375405 |
Sealing frame cover SHVS
(valid from 05/08/2006)
|
2 ST | ||
81293 |
Pan-head screw M5X3 DIN 923 1.4301
(valid from 03/02/2017)
|
4 ST | ||
146516 |
NUT,ROUNDHEAD- M5
(valid from 05/08/2006)
|
4 ST | ||
146517 |
flat-head screw M5x8 wrench opening 13
(valid from 05/08/2006)
|
4 ST | ||
385096 |
Seal 9x5,5 black
(valid from 02/05/2020)
|
1 M | ||
107095 |
Cable harness 2SHVS 1/N/PE
(valid from 10/25/2010)
|
1 ST | ||
106871 |

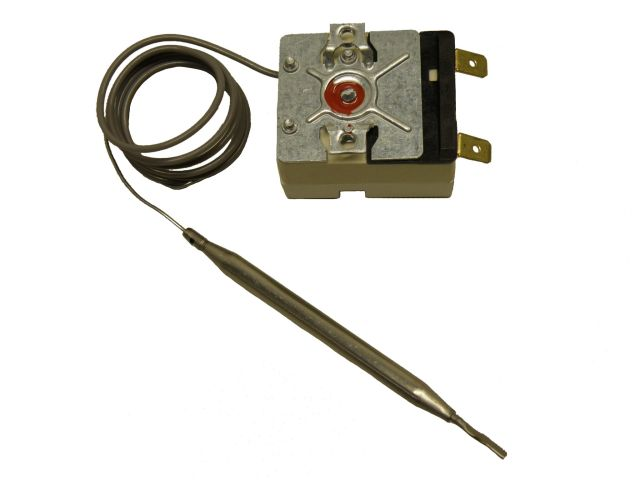

Thermostat capillar 55.13129.070 145°C
(valid from 03/05/2008)
|
2 ST | ||
106311 |
Hexagon nut M20x1.5 (plastic)
(valid from 05/08/2006)
|
1 ST | ||
106304 |
Cable gland M20x1.5 black
(valid from 05/08/2006)
|
1 ST | ||
105429 |
terminal block Wieland KL 24/3 SL
(valid from 05/08/2006)
|
1 ST | ||
107649 |
Spiral cable Europe 3x1,5 qmmst WG
(valid from 03/03/2021)
|
1 ST | ||
106868 |
Power switch bipolar 16A B4MASK-series
(valid from 03/04/2008)
|
1 ST | ||
106909 |

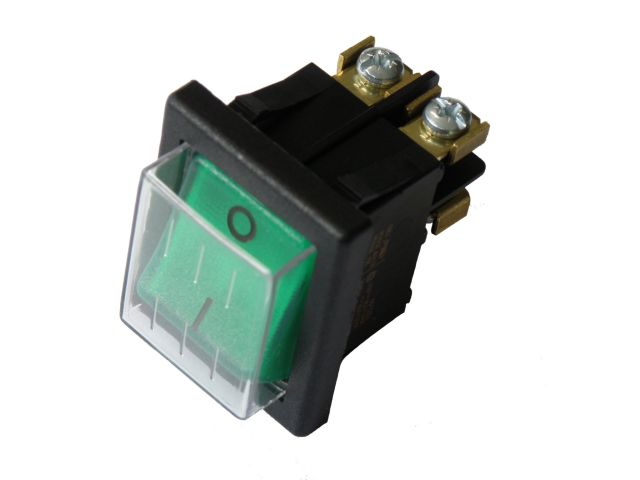

Switch 2pol. 20A/T 125 incl. Abd.
(valid from 09/08/2008)
|
1 ST | ||
369654 |
Plug holder universal
(valid from 04/03/2008)
|
1 ST | ||
117766 |
plastic cover ring for plug holder
(valid from 10/02/2008)
|
1 ST | ||
386502 |
Swivel castor 125, DIN-PL, (gray)
(valid from 08/24/2022)
|
2 ST | ||
386501 |
Swivel castor 125 lock., DIN-PL (gray)
(valid from 08/24/2022)
|
2 ST | ||
376812 |
Corner guard closed RAL7043
(valid from 03/18/2014)
|
4 ST | ||
376371 |
Plug corner guard RAL 7043
(valid from 03/18/2014)
|
16 ST | ||
146680 |
EXPAND. NUT 72.30.459 F. SHEET SCRW. 4.2
(valid from 05/08/2006)
|
12 ST | ||
363257 |
Pipe 32x1,5x 412 Fixl. 1.4301 GSL 220 K
(valid from 05/08/2006)
|
1 ST | ||
376808 |
Push-handle holder right RAL7043
(valid from 03/17/2014)
|
1 ST | ||
376809 |
Push-handle holder left RAL7043
(valid from 03/17/2014)
|
1 ST | ||
376810 |
Cover for rght. push hand., grey RAL7043
(valid from 03/17/2014)
|
1 ST | ||
376811 |
Cover for left push hand., grey RAL7043
(valid from 03/17/2014)
|
1 ST | ||
106184 |
Warning sign hot surface
(valid from 05/08/2006)
|
2 ST |
