Sample images
BC GR 3500, 230 V
Prod. No. 574206
Product details
COOK griddle, ribbedincl. Teflon grease drain plug
Exterior dimensions: 620x400x240 mm
Output/connected load: 220-240V 1N PE 16A 50-60Hz 3.5kW
Added to Your Shopping Cart
Usable area width | 304 Millimeter |
Usable area length | 506 Millimeter |
Usable area heatable width | 304 Millimeter |
Usable area heatable length | 435 Millimeter |
Exterior dimension height | 240 Millimeter |
Electrical | Yes |
Supports/ledges | No |
Exterior dimensions depth | 400 Millimeter |
Exterior dimensions width | 620 Millimeter |
Weight | 31 Kilogram |
Temperature range to | 250 °C |
Temperature range from | 80 °C |
Material | Stainless steel |
Product group | COOK |
Customer Information Drawings (3)
Declarations of Conformity (2)
Use & Operating Manuals (2)
Tender specifications (4)
121559 |

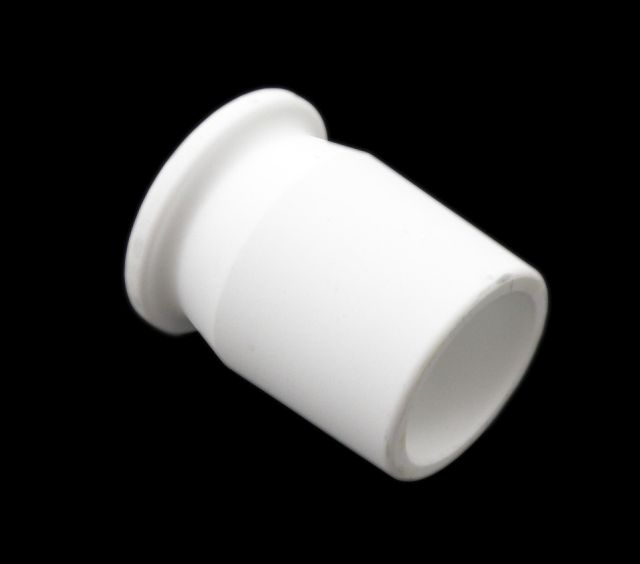

Grease drain plug
(valid from 06/19/2015)
|
1 ST | ||
121560 |
Grease tray for griddle
(valid from 06/19/2015)
|
1 ST | ||
121652 |
Bottom lid 400 cpl.
(valid from 09/26/2016)
|
1 ST | ||
121612 |
Gauge foot M10x30 black
(valid from 06/19/2015)
|
4 ST | ||
121596 |
Tubular heating element 230V 3500W D8.5
(valid from 06/19/2015)
|
1 ST | ||
121556 |
Control knob black notch on top
(valid from 06/19/2015)
|
1 ST | ||
121576 |

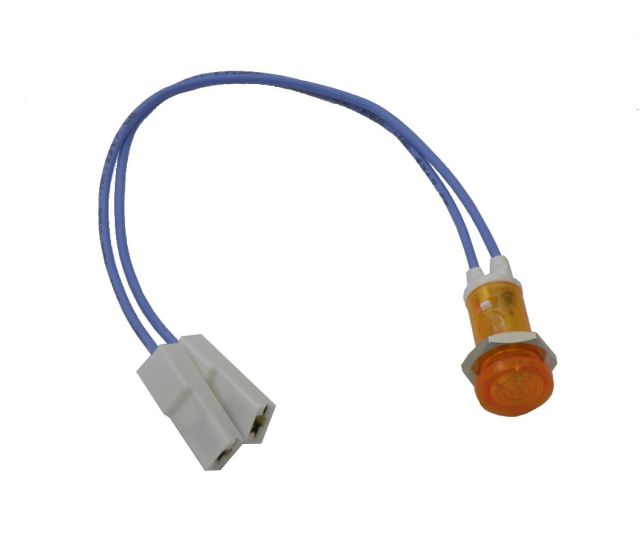

Signal lamp yellow 230VAC
(valid from 06/19/2015)
|
1 ST | ||
121577 |

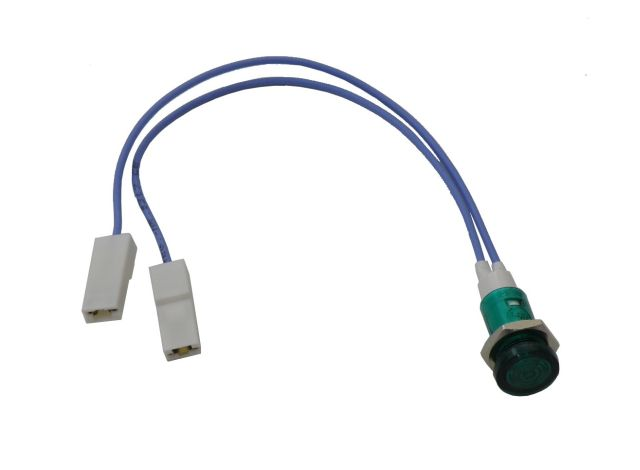

Signal lamp green 230VAC
(valid from 06/19/2015)
|
1 ST | ||
121613 |
V-ring V 6 S 6401
(valid from 06/19/2015)
|
1 ST | ||
121550 |
Self-adhessive control panel GP 400
(valid from 06/19/2015)
|
1 ST | ||
121590 |
Terminal block 400V/40A
(valid from 06/19/2015)
|
1 ST | ||
121616 |
strain relief for connection cable
(valid from 06/19/2015)
|
1 ST | ||
121575 |
Capillary tube thermostat 70-265 °C
(valid from 06/19/2015)
|
1 ST | ||
121787 |

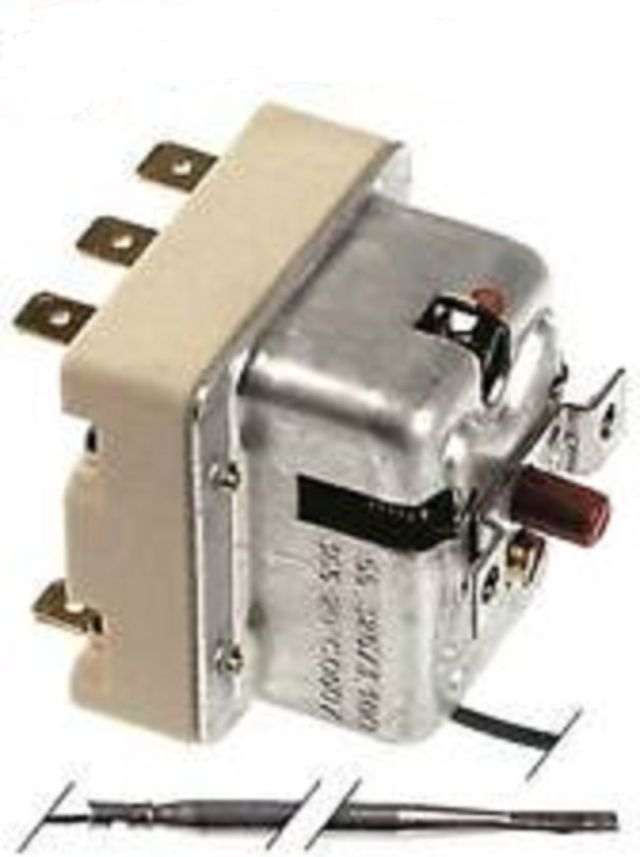

Safety temperature limiter capillary.
(valid from 06/22/2018)
|
1 ST | ||
134069 |
Power supply cable cpl. 230 V
(valid from 04/26/2021)
|
1 ST |
