BC DG 4200, 400 V
Prod. No. 574208
Product details
COOK deep griddleincl. Teflon grease drain plug
Exterior dimensions: 620x400x240 mm
Output/connected load: 400V 3N PE 16A 50-60Hz 4.2kW
Added to Your Shopping Cart
| Capacity to | 7 Liter |
| Basin depth | 65 Millimeter |
| Usable area width | 304 Millimeter |
| Usable area length | 506 Millimeter |
| Exterior dimension height | 240 Millimeter |
| Electrical | Yes |
| Supports/ledges | No |
| Exterior dimensions depth | 400 Millimeter |
| Exterior dimensions width | 620 Millimeter |
| Weight | 33 Kilogram |
| Temperature range to | 250 °C |
| Temperature range from | 80 °C |
| Material | Stainless steel |
| Product group | COOK |
Customer Information Drawings (3)
Declarations of Conformity (2)
Use & Operating Manuals (2)
Tender specifications (4)
|
121543 |

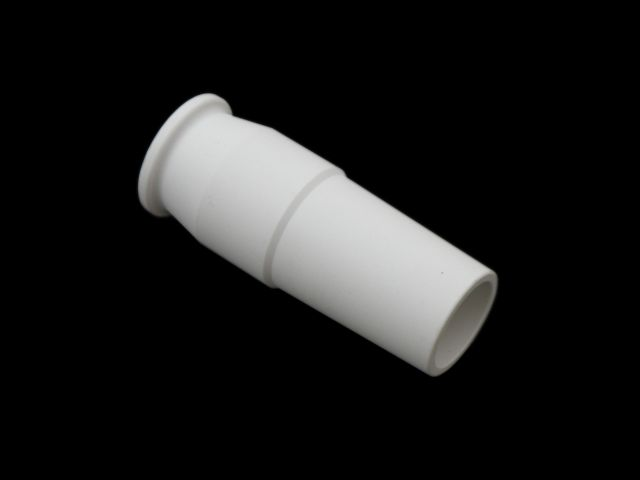

Grease drain plugs made of Teflon® D40
(valid from 06/19/2015)
|
1 ST | |
|
121544 |

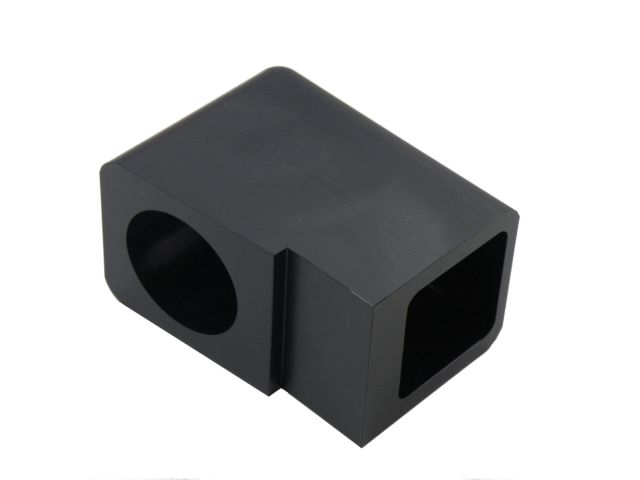

drain cock black
(valid from 06/19/2015)
|
1 ST | |
|
121652 |
Bottom lid 400 cpl.
(valid from 09/26/2016)
|
1 ST | |
|
121612 |
Gauge foot M10x30 black
(valid from 06/19/2015)
|
4 ST | |
|
121595 |
Tubular heating element 230V 1400W D8,5
(valid from 06/19/2015)
|
3 ST | |
|
121550 |
Self-adhessive control panel GP 400
(valid from 06/19/2015)
|
1 ST | |
|
121576 |
Signal lamp yellow 230VAC
(valid from 06/19/2015)
|
1 ST | |
|
121577 |
Signal lamp green 230VAC
(valid from 06/19/2015)
|
1 ST | |
|
121556 |
Control knob black notch on top
(valid from 06/19/2015)
|
1 ST | |
|
121613 |
V-ring V 6 S 6401
(valid from 06/19/2015)
|
1 ST | |
|
121590 |
Terminal block 400V/40A
(valid from 06/19/2015)
|
1 ST | |
|
121616 |
strain relief for connection cable
(valid from 06/19/2015)
|
1 ST | |
|
121575 |
Capillary tube thermostat 70-265 °C
(valid from 06/19/2015)
|
1 ST | |
|
121787 |
Safety temperature limiter capillary.
(valid from 06/22/2018)
|
1 ST | |
|
121588 |
Power supply cable 5x1,5 cpl. with plug
(valid from 06/19/2015)
|
1 ST |
